Engineered with low-VOC, heat-resistant, wear-resistant engineering polymers (PC/ABS, POM, Electroplated ABS), offering refined tactile operating torque (0.05–0.15 N·m), Class-A interior aesthetics, and squeak-free (NVH/BSR-optimized) airflow direction control.

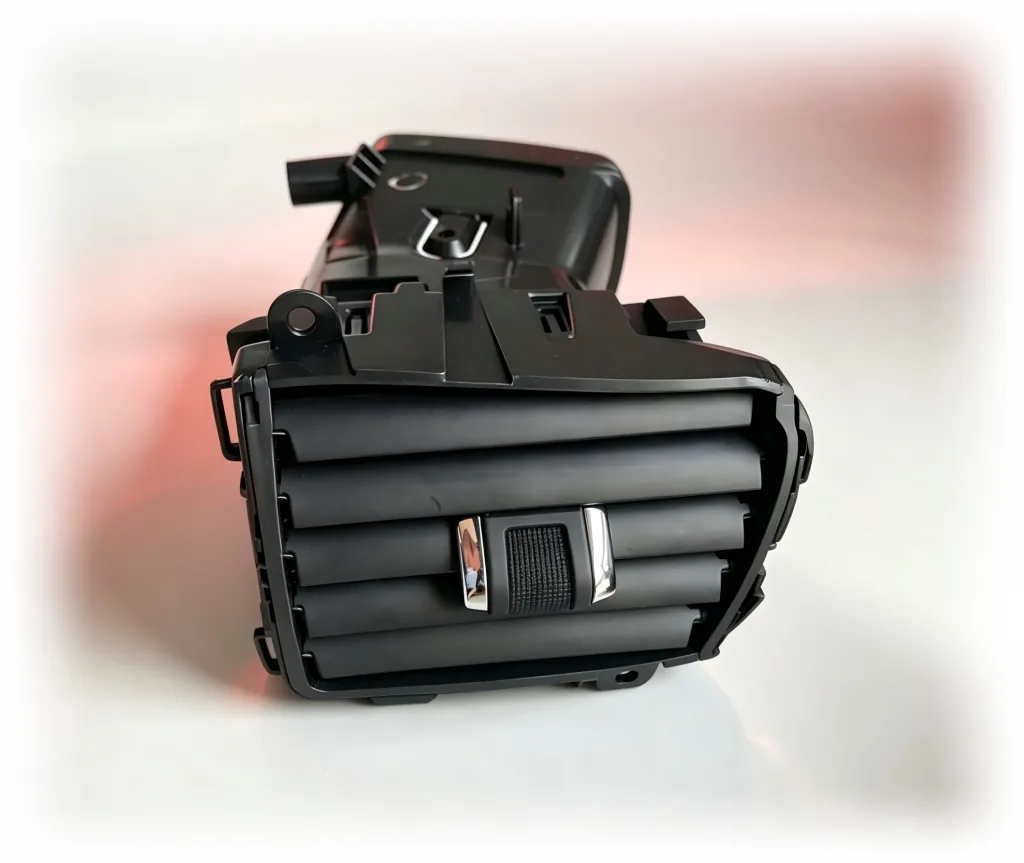

Automotive HVAC Air Vent Assembly & Precision Injection Molded Louver Blades (Custom OEM/ODM)
| Recommended Resins | PC, ABS, PC+ABS, PA66+GF, POM, PBT, PMMA, TPU, PEEK (RoHS / REACH) |
|---|---|
| Tooling & Molding | Precision Multi-Cavity Tooling, Cold/Hot Runner, High-Gloss Molding, 2K Insert Overmolding |
| Tooling Precision | ±0.01 mm (High-speed CNC, Mirror Spark EDM, Slow Wire Cutting) |
| Secondary Finish | SPI A2 Mirror Polish, VDI / MT Texture Grain, Silk-Screen Printing, Vacuum Metalizing |
| T1 Sample Lead Time | 15 – 25 Working Days (DFM Analysis delivered within 24 Hours) |
| Quality Assurance | 100% CMM Dimension Verification, Color Spectrophotometer, FAI Report |
Part Details & Engineering Gallery
Close-up views of mold fitting, surface finish, and precision structure.
Capability & Engineering Review
[Key Highlights / Bullet Points]
Precision Kinematics & Smooth Damped Tactility: Self-lubricating POM gears and linkages eliminate sticking and backlash, ensuring smooth, linear, and premium resistance across horizontal/vertical vane strokes.
Automotive Class-A Finish & Electroplated Accents: Knob sliders feature trivalent bright chrome or satin pearl chrome trim, paired with finely textured matte bezels (zero sink marks, flow lines, or burrs).
Strict NVH & Anti-Squeak Optimization: Thermally compensated clearances and acoustic damping prevent noise, squeak, and rattle (BSR) across extreme cabin temperatures (-40°C to +90°C).
Low-VOC & Environmental Durability: Formulated with low-odor, low-fogging resins conforming to OEM automotive cabin standards; resistant to UV solar degradation and high-temperature cycling.
Turnkey Manufacturing & Assembly: Full capabilities covering multi-cavity precision tooling, 2K dual-color molding, electroplating, precision damping grease application, and automated torque testing.
[Product Overview]
The automotive HVAC air outlet (Air Vent Register Assembly) is one of the most frequently touched interior components—demanding an impeccable balance of ergonomic feel, visual elegance, airtight shut-off sealing, and whisper-quiet mechanical performance.
Dongguan Ruibo Mould Co., Ltd. delivers comprehensive tooling, molding, and sub-assembly solutions for global Tier 1 interior suppliers and automotive OEMs. From center console vents and side demisters to rear passenger independent registers, our engineering team utilizes advanced Moldflow simulations to control thin-wall louver warpage, gate vestige, and tight multi-axis pin concentricity (±0.01mm). Coupled with hardened S136 tool steel, we guarantee consistent operating torque, flawless flush-and-gap fit, and long-term durability across high-volume production.
[Advanced Structural & Functional Integrations]
Ergonomic Control Slider with Chrome Clips: Textured knurled center dial offers intuitive tactile grip; chrome accent clips endure stringent cross-hatch adhesion and artificial sweat corrosion tests.
Synchronized Multi-Louver Deflection: Aerodynamic horizontal louvers and vertical deflector fins provide multi-directional airflow distribution with tight positive shut-off seal.
Anti-Rattle Mounting Architecture: High-toughness perimeter snap-tabs and pre-stressed screw bosses ensure vibration-proof mating with the instrument panel.
[Why Partner with Dongguan Ruibo Mould]
Full Sub-Assembly Competency: Complete turnkey line covering multi-component injection, chrome trim clipping, automated grease dispensing, and 100% torque inspection.
Rigorous Automotive Quality Standards: Strict execution of APQP, FMEA, PPAP Level 3, MSA, and SPC, coupled with our 16-Step Pre-Shipment Quality Protocol.
Rapid Tooling & Program Support: Rapid prototypes delivered in 3–5 days; production hardened tooling ready in 25–35 days with dedicated 24/7 engineering support.
? Kickstart Your Automotive HVAC Air Vent Project Today!
Submit your 3D CAD data (CATIA, STEP, UG) to Ruibo Mould. Our automotive engineering team will provide a complimentary DFM Analysis & Project Quotation within 24 Hours.
